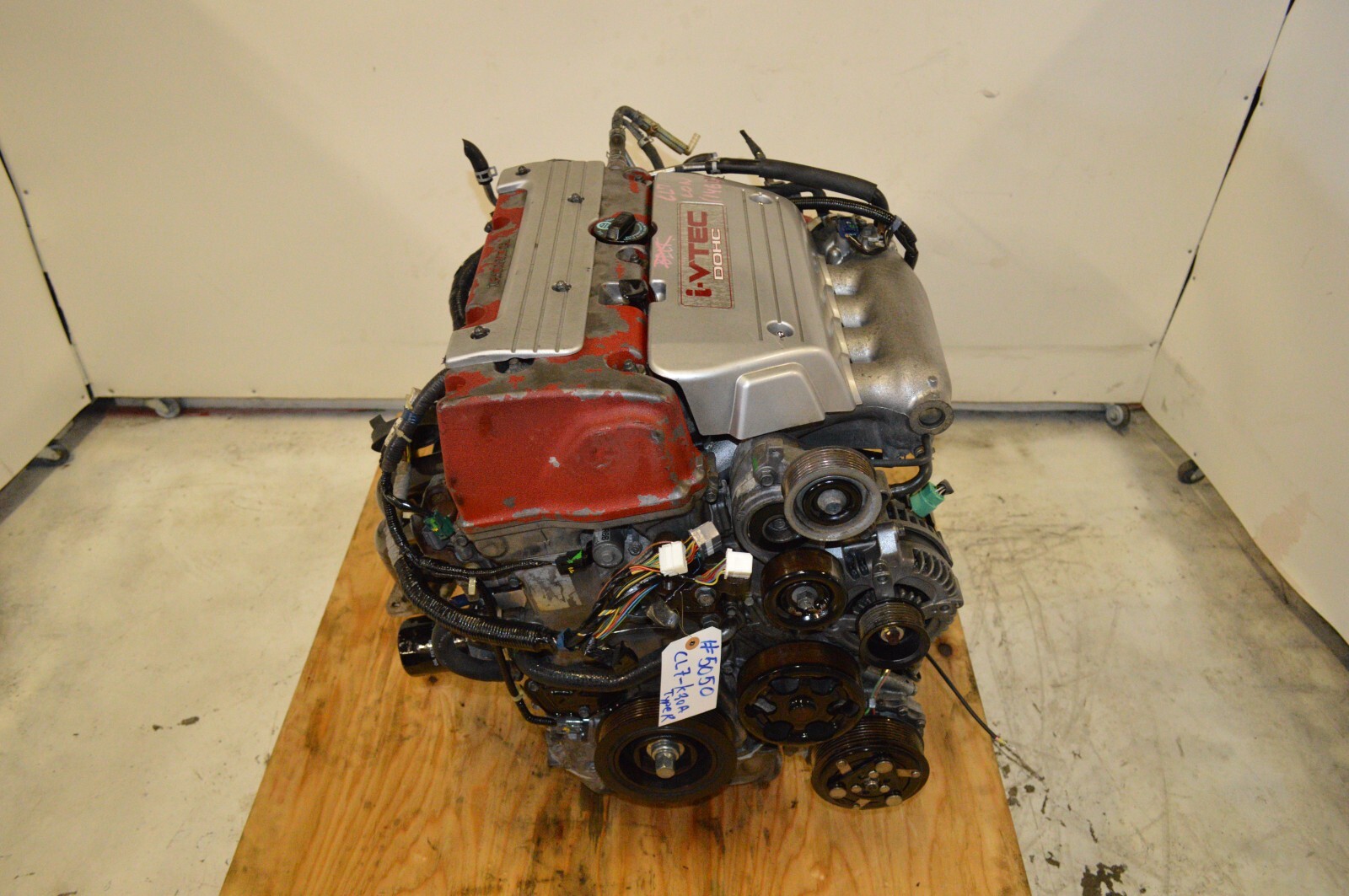

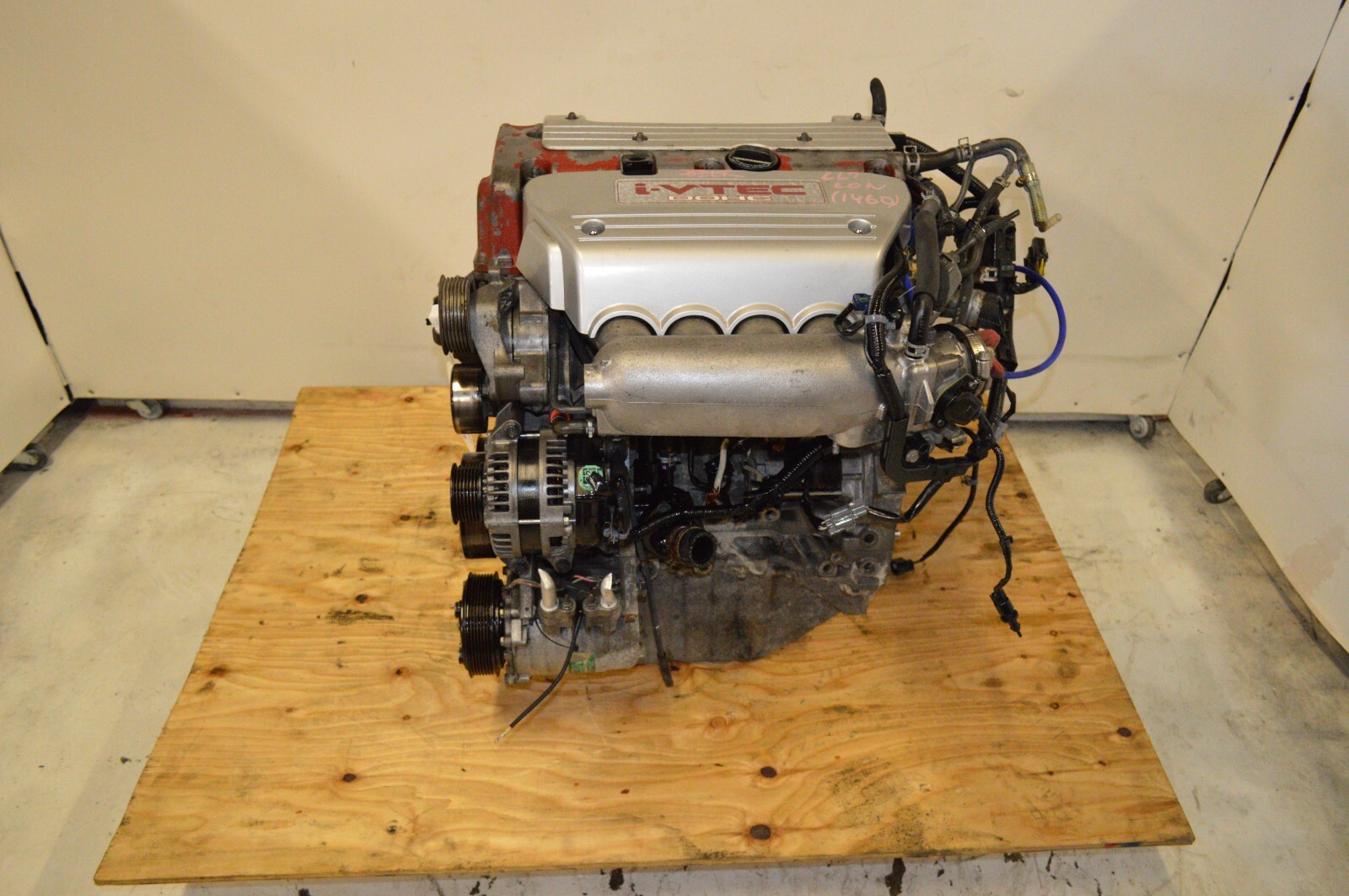

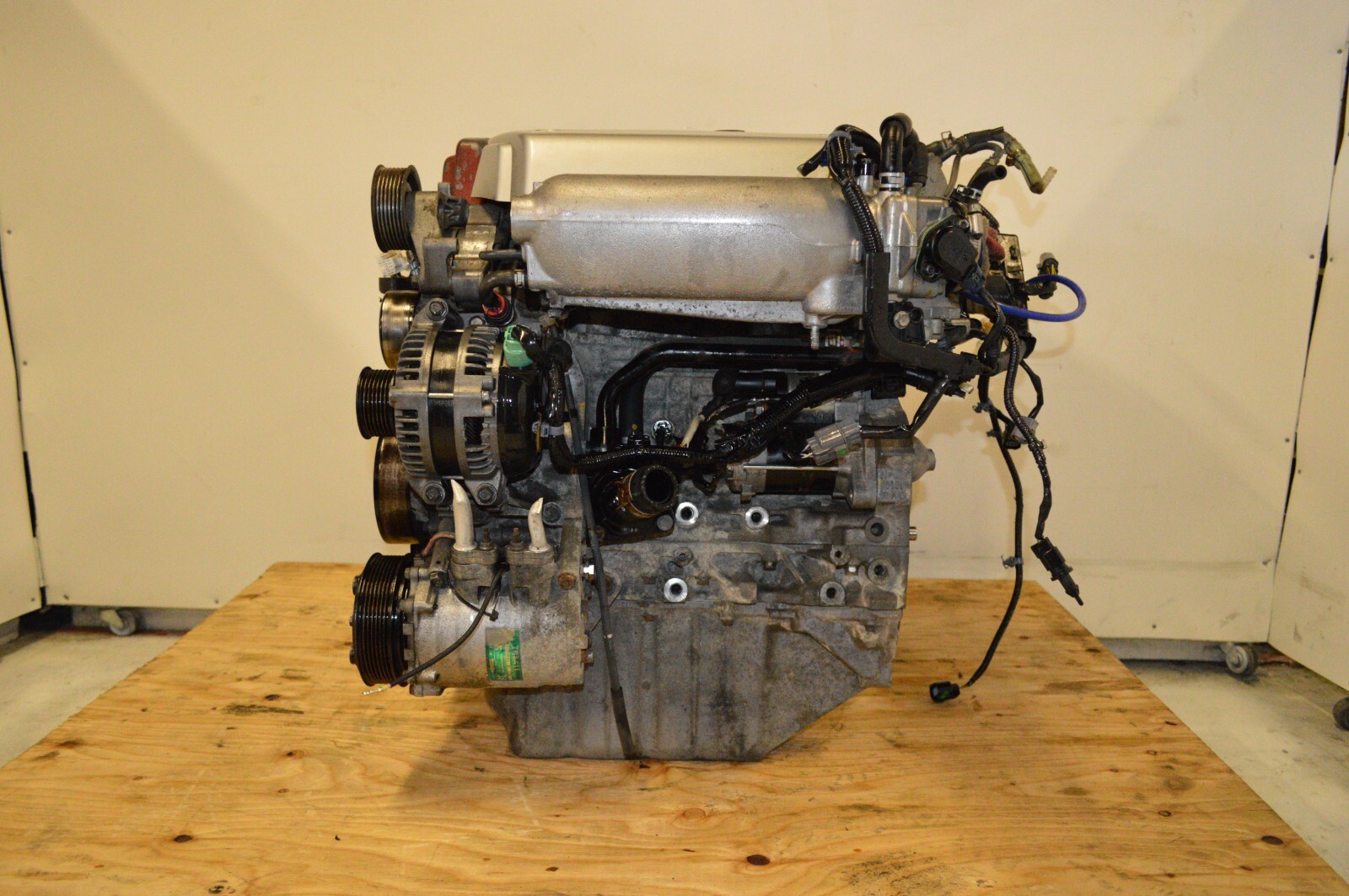

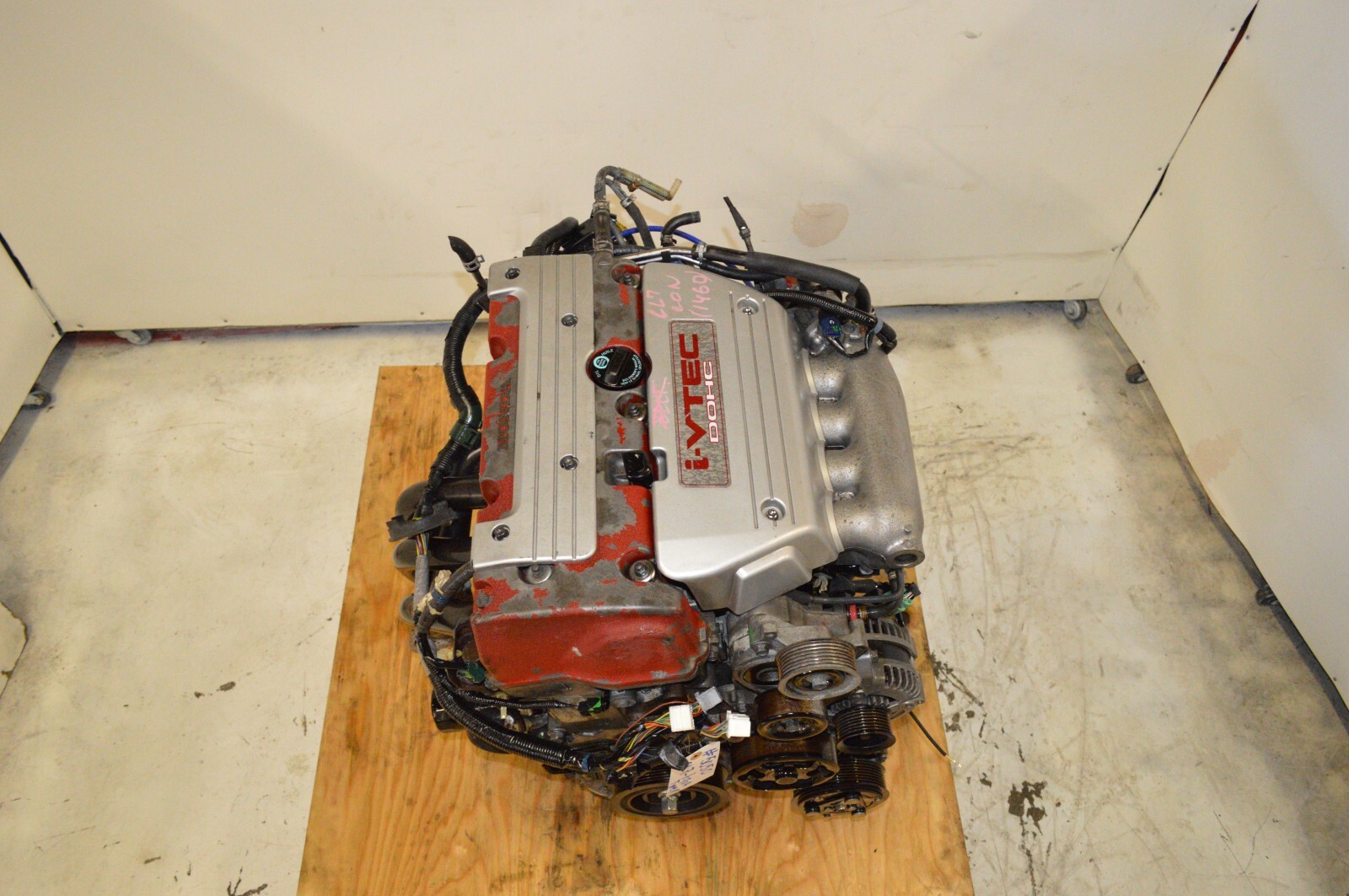

Honda K20A Engine 2.0L
The Honda K20A is a 2.0-liter inline-4 engine produced by Honda from 2001 to around 2010. It is widely regarded as one of the greatest four-cylinder engines ever built, representing the pinnacle of Honda's high-performance naturally aspirated engineering and the final evolution of the "red top" VTEC legacy.
Here are the detailed specifications for the Honda K20A engine:
Specification | Detail |
|---|---|
Configuration | Inline-4 |
Displacement | 2.0 L (1,998 cc / 121.9 cu in) |
Bore x Stroke | 86.0 mm × 86.0 mm (3.39 in × 3.39 in) |
Compression Ratio | 11.5:1 (DC5/EP3) / 11.7:1 (FD2) |
Valvetrain | DOHC i-VTEC (VTEC + VTC), 4 valves per cylinder, 16 valves total, timing chain drive |
Fuel System | Honda PGM-FI multi-point electronic fuel injection |
Fuel Type | Premium unleaded gasoline (high octane required) |
VTEC Engagement | ~5,800-6,000 rpm (dependent on variant) |
Redline | 8,000-8,600 rpm (8,600 rpm on FD2) |
Block Material | High-rigidity aluminum alloy (closed deck) |
Head Material | Aluminum alloy |
Crankshaft | Fully counterbalanced forged steel |
Connecting Rods | Fracture-split forged steel |
Power output varies significantly by application and model year, with the K20A evolving through three distinct phases :
Application / Version | Peak Horsepower | Peak Torque |
|---|---|---|
Integra Type R (DC5) / Civic Type R (EP3) | 212-220 PS (209-217 hp / 156-162 kW) @ 8,000 rpm | 202-206 Nm (149-152 lb-ft) @ 7,000 rpm |
Civic Type R (FD2) / Accord Euro-R (CL7) | 225 PS (222 hp / 165 kW) @ 8,000 rpm | 215 Nm (159 lb-ft) @ 6,100-7,000 rpm |
Specific Output | 112.5 PS per liter (FD2) – among the highest of any mass-produced naturally aspirated 2.0L engine |
