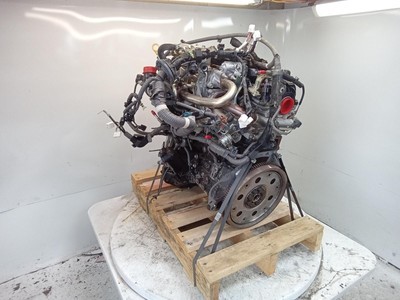

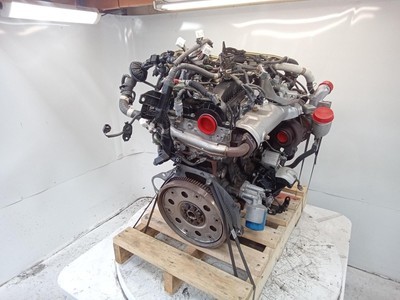

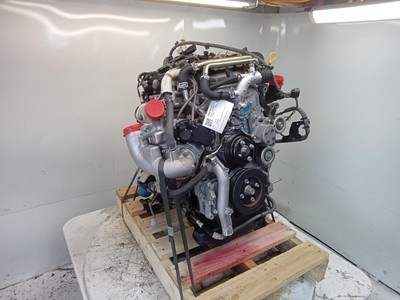

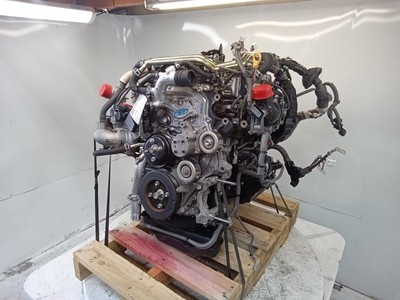

Toyota 1GD-FTV Engine 2.8L
The Toyota 1GD-FTV is a 2.8-liter turbocharged diesel engine belonging to Toyota's GD series, introduced in 2015. It was developed as a larger-displacement counterpart to the 2GD-FTV, offering more power and torque for heavier applications like the Land Cruiser Prado, Hilux, and Fortuner.
Here are the detailed specifications for the Toyota 1GD-FTV engine:
Specification | Detail |
|---|---|
Configuration | Inline-4 |
Displacement | 2.8 L (2,754-2,755 cc / 168 cu in) |
Bore x Stroke | 92.0 mm × 103.6 mm (3.62 in × 4.08 in) |
Compression Ratio | 15.6:1 |
Valvetrain | DOHC, 4 valves per cylinder, chain drive |
Induction | Variable Nozzle Turbocharger (VNT) with Intercooler |
Fuel System | Common Rail Direct Injection |
Fuel Type | Diesel |
Emissions Control | SCR with AdBlue, DPF, DOC |
Power and torque figures vary significantly depending on the vehicle application, model year, and transmission pairing:
Application / Version | Peak Horsepower | Peak Torque |
|---|---|---|
Early Models (2015, Automatic) | 177-180 PS (174-178 hp / 130 kW) @ 3,400 rpm | 450 N·m (332 lb-ft) @ 1,600-2,400 rpm |
Early Models (2015, Manual) | 177 PS (175 hp / 130 kW) @ 3,400 rpm | 420 N·m (310 lb-ft) |
2020+ Upgrade (Hilux/Fortuner) | 201-204 PS (198-201 hp / 148-150 kW) @ 3,400 rpm | 500 N·m (369-370 lb-ft) @ 1,600-2,800 rpm |
GR-S / GR Sport Models | 224 PS (221 hp / 165 kW) | 550 N·m (406-410 lb-ft) |
HiAce (Detuned) | 150 PS (148 hp / 110 kW) @ 3,600 rpm | 300 N·m (221 lb-ft) @ 1,000-3,400 rpm |
Innova (Detuned) | 170-174 PS (168-172 hp / 125-128 kW) | 343-360 N·m (253-266 lb-ft) |
Marine Application (Yanmar 4LV) | Up to 250 hp (253 PS / 186 kW) @ 3,800 rpm | Varies |
